terraform-aws-arc-opensearch ¶

Module: sourcefuse/arc-opensearch/aws

Registry: https://registry.terraform.io/modules/sourcefuse/arc-opensearch/aws

Category: Analytics / Search

Source: https://github.com/sourcefuse/terraform-aws-arc-opensearch

Tip

🤖 New: Use this module with AI assistants via the ARC IaC MCP Server — search, scaffold, and security-scan ARC modules from natural language. Quick setup ↓

Overview¶

Deploys Amazon OpenSearch Service domains (managed or serverless) with VPC, encryption, fine-grained access control, and CloudWatch alarms.

Architecture¶

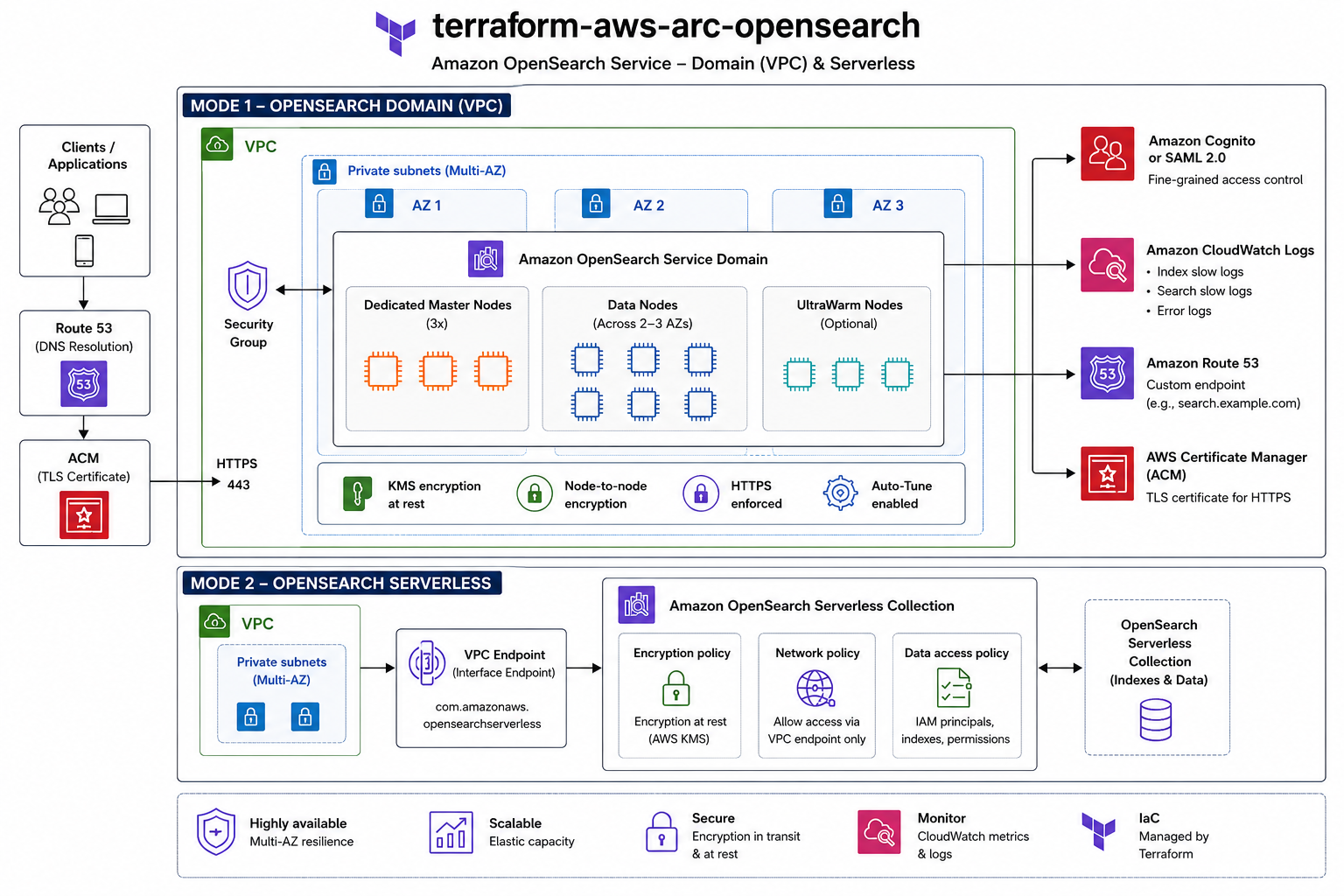

Architecture Diagram

What It Does¶

Managed OpenSearch domain with configurable instance type and count
OpenSearch Serverless collections
VPC deployment with security groups
Encryption at rest and in transit
Fine-grained access control with master user
Automated snapshots and UltraWarm storage
CloudWatch alarms for cluster health

Quickstart¶

################################################################################
## opensearch
################################################################################
module "opensearch" {
  source                       = "sourcefuse/arc-opensearch/aws"
  version                      = "0.1.2"
  namespace                    = var.namespace
  environment                  = var.environment
  name                         = var.name
  engine_version               = var.engine_version
  instance_type                = var.instance_type
  instance_count               = var.instance_count
  enable_vpc_options           = true
  vpc_id                       = data.aws_vpc.default.id
  subnet_ids                   = local.private_subnet_ids
  ingress_rules                = local.ingress_rules
  egress_rules                 = local.egress_rules

  tags = module.tags.tags
}

################################################################################
## opensearch serverless
################################################################################
 module "opensearch_serverless" {
  source                       = "sourcefuse/arc-opensearch/aws"
  version                      = "0.1.2"
  enable_serverless            = true
  namespace                    = var.namespace
  environment                  = var.environment
  name                         = var.name
  ingress_rules                = local.ingress_rules
  egress_rules                 = local.egress_rules
  subnet_ids                   = local.private_subnet_ids
  vpc_id                       = data.aws_vpc.default.id
  data_lifecycle_policy_rules  = local.data_lifecycle_policy_rules
  access_policy_rules          = local.access_policy_rules
  tags                         = module.tags.tags

}

################################################################################
## opensearch
################################################################################
module "opensearch" {
  source                         = "sourcefuse/arc-opensearch/aws"
  version                        = "1.0.3"
  namespace                      = var.namespace
  environment                    = var.environment
  name                           = var.name
  engine_version                 = var.engine_version
  instance_type                  = var.instance_type
  instance_count                 = var.instance_count
  enable_encrypt_at_rest         = true
  enable_domain_endpoint_options = true
  advanced_security_enabled      = true

  tags = module.tags.tags
}

################################################################################
## opensearch serverless
################################################################################
module "opensearch_serverless" {
  source                       = "sourcefuse/arc-opensearch/aws"
  version                      = "1.0.3"
  enable_serverless            = true
  namespace                    = var.namespace
  environment                  = var.environment
  name                         = var.name
  enable_public_access         = true
  data_lifecycle_policy_rules  = local.data_lifecycle_policy_rules
  access_policy_rules          = local.access_policy_rules

  tags = module.tags.tags
}

Required Inputs¶

Name	Type	Description
`namespace`	`string`	Namespace prefix
`environment`	`string`	Deployment environment
`name`	`string`	Domain name suffix
`engine_version`	`string`	OpenSearch version
## Key Outputs

Name	Description
`domain_endpoint`	OpenSearch domain endpoint
`domain_arn`	OpenSearch domain ARN
`kibana_endpoint`	Kibana/Dashboards endpoint
## Full Variable & Output Reference

The complete inputs/outputs reference is auto-generated below.

Requirements¶

Name	Version
terraform	>= 1.5.0
aws	~> 5.0

Providers¶

Name	Version
aws	5.74.0

Modules¶

Name	Source	Version
opensearch	./modules/opensearch-domain	n/a
opensearch_serverless	./modules/opensearch-serverless	n/a

Resources¶

Name	Type
aws_caller_identity.current	data source

Inputs¶

Name	Description	Type	Default	Required
access_policies	Custom access policy for OpenSearch domain. If empty, default policy will be used	`string`	`""`	no
access_policy_rules	List of rules for the access policy.	list(object({ resource_type = string resource = list(string) permissions = list(string) principal = optional(list(string), []) }))	`[]`	no
advanced_security_enabled	Enable advanced security options (fine-grained access control)	`bool`	`false`	no
anonymous_auth_enabled	Enable anonymous authentication	`bool`	`false`	no
auto_software_update_enabled	Enable automatic software updates for OpenSearch	`bool`	`false`	no
auto_tune_cron_expression	Cron expression for Auto-Tune maintenance schedule	`string`	`"0 1 * * ?"`	no
auto_tune_desired_state	Desired state of Auto-Tune	`string`	`"ENABLED"`	no
auto_tune_duration_unit	Duration unit for Auto-Tune maintenance	`string`	`"HOURS"`	no
auto_tune_duration_value	Duration value for Auto-Tune maintenance	`number`	`1`	no
auto_tune_start_at	Start time for Auto-Tune maintenance	`string`	`"2024-10-23T01:00:00Z"`	no
availability_zone_count	The number of availability zones to use for zone awareness.	`number`	`2`	no
cognito_identity_pool_id	Cognito Identity Pool ID	`string`	`""`	no
cognito_user_pool_id	Cognito User Pool ID	`string`	`""`	no
create_access_policy	Flag to determine if access policy should be created.	`bool`	`true`	no
create_data_lifecycle_policy	Flag to determine if data lifecycle policy should be created.	`bool`	`true`	no
create_encryption_policy	Flag to determine if encryption policy should be created.	`bool`	`true`	no
custom_certificate_arn	ARN of the ACM certificate for the custom endpoint	`string`	`""`	no
custom_hostname	Custom domain name for the OpenSearch endpoint	`string`	`""`	no
data_lifecycle_policy_rules	Data lifecycle policy rules for the indices.	list(object({ indexes = list(string) retention = string }))	[ { "indexes": [ "*" ], "retention": "Unlimited" } ]	no
dedicated_master_count	Number of dedicated master instances	`number`	`3`	no
dedicated_master_enabled	Whether dedicated master is enabled	`bool`	`false`	no
dedicated_master_type	Instance type for the dedicated master node	`string`	`"m5.large.search"`	no
description	A description for the OpenSearch collection.	`string`	`"OpenSearch collection domain for logs and search"`	no
ebs_enabled	Whether EBS is enabled for the domain	`bool`	`true`	no
egress_rules	A list of egress rules for the security group.	list(object({ from_port = number to_port = number protocol = string cidr_blocks = list(string) }))	`[]`	no
enable_auto_tune	Enable Auto-Tune for the domain	`bool`	`false`	no
enable_cognito_options	Enable Cognito authentication for the OpenSearch domain	`bool`	`false`	no
enable_custom_endpoint	Enable custom domain endpoint	`bool`	`false`	no
enable_domain_endpoint_options	Enable custom domain endpoint options for the OpenSearch domain.	`bool`	`false`	no
enable_encrypt_at_rest	Enable encryption at rest for the OpenSearch domain.	`bool`	`false`	no
enable_off_peak_window_options	Enable off-peak window options for the domain	`bool`	`false`	no
enable_public_access	Enable public access for the OpenSearch collection. If false, private access will be used.	`bool`	`false`	no
enable_serverless	Enable OpenSearch Serverless. If true, creates the serverless module; if false, creates the standard module.	`bool`	`false`	no
enable_snapshot_options	Enable snapshot options for the domain	`bool`	`false`	no
enable_vpc_options	Enable VPC options for the OpenSearch domain.	`bool`	`false`	no
enable_zone_awareness	Enable zone awareness for the OpenSearch domain.	`bool`	`false`	no
encrypt_at_rest_enabled	Enable encryption at rest	`bool`	`true`	no
enforce_https	Force HTTPS on the OpenSearch endpoint	`bool`	`true`	no
engine_version	OpenSearch or Elasticsearch engine version	`string`	`"OpenSearch_1.0"`	no
environment	Name of the environment, i.e. dev, stage, prod	`string`	n/a	yes
ingress_rules	A list of ingress rules for the security group.	list(object({ from_port = number to_port = number protocol = string cidr_blocks = list(string) }))	`[]`	no
instance_count	Number of instances in the cluster	`number`	`2`	no
instance_type	Instance type for the OpenSearch domain	`string`	`"m5.large.search"`	no
internal_user_database_enabled	Enable internal user database for fine-grained access control	`bool`	`true`	no
iops	Provisioned IOPS for the volume	`number`	`null`	no
kms_key_id	KMS key ID for encryption at rest	`string`	`""`	no
log_publishing_enabled	Whether to enable the log publishing option.	`bool`	`true`	no
log_types	List of log types to publish to CloudWatch (Valid values: INDEX_SLOW_LOGS, SEARCH_SLOW_LOGS, ES_APPLICATION_LOGS, AUDIT_LOGS)	`list(string)`	[ "INDEX_SLOW_LOGS", "SEARCH_SLOW_LOGS" ]	no
master_user_arn	The ARN of the IAM role for fine-grained access control. Required if use_iam_arn_as_master_user is true.	`string`	`""`	no
master_user_name	Master user name for OpenSearch	`string`	`"admin"`	no
name	Name of the OpenSearch domain	`string`	n/a	yes
namespace	Namespace of the project, i.e. arc	`string`	n/a	yes
node_to_node_encryption_enabled	Enable node-to-node encryption	`bool`	`true`	no
off_peak_hours	Off-peak window start time (hours)	`number`	`0`	no
off_peak_minutes	Off-peak window start time (minutes)	`number`	`0`	no
retention_in_days	The number of days to retain log events in the log group	`number`	`7`	no
saml_options	Configuration block for SAML options in the OpenSearch domain.	object({ enabled = bool idp_entity_id = optional(string) idp_metadata_content = optional(string) roles_key = optional(string) session_timeout_minutes = optional(number) subject_key = optional(string) })	{ "enabled": false, "idp_entity_id": null, "idp_metadata_content": null, "roles_key": null, "session_timeout_minutes": null, "subject_key": null }	no
security_group_name	Name for the security group	`string`	`""`	no
snapshot_start_hour	Start hour for the automated snapshot	`number`	`0`	no
subnet_ids	List of subnet IDs for the OpenSearch domain	`list(string)`	`[]`	no
tags	Tags to apply to resources	`map(string)`	n/a	yes
throughput	Provisioned throughput for the volume	`number`	`null`	no
tls_security_policy	TLS security policy for HTTPS endpoints	`string`	`"Policy-Min-TLS-1-2-PFS-2023-10"`	no
type	The type of OpenSearch collection.	`string`	`"TIMESERIES"`	no
use_iam_arn_as_master_user	Set to true to use IAM ARN as the master user, false to create a master user.	`bool`	`false`	no
use_standby_replicas	Flag to enable or disable standby replicas.	`bool`	`true`	no
use_ultrawarm	Whether to enable UltraWarm nodes	`bool`	`false`	no
volume_size	EBS volume size in GB	`number`	`20`	no
volume_type	EBS volume type	`string`	`"gp2"`	no
vpc_id	ID of the VPC for OpenSearch domain	`string`	`null`	no
warm_count	Number of UltraWarm instances	`number`	`2`	no
warm_type	UltraWarm node instance type	`string`	`"ultrawarm1.medium.search"`	no
zone_awareness_enabled	Whether zone awareness is enabled	`bool`	`true`	no

Outputs¶

Name	Description
opensearch_collection_endpoint	The Endpoint of the OpenSearch collection
opensearch_domain_arn	The ARN of the OpenSearch domain.
opensearch_domain_endpoint	The endpoint of the OpenSearch domain.
opensearch_domain_id	The unique identifier for the OpenSearch domain.
opensearch_serverless_collection_arn	The ARN of the OpenSearch Serverless collection
opensearch_serverless_collection_id	The ID of the OpenSearch Serverless collection

Versioning¶

This project uses a .version file at the root of the repo which the pipeline reads from and does a git tag.

When you intend to commit to main, you will need to increment this version. Once the project is merged, the pipeline will kick off and tag the latest git commit.

Development¶

Prerequisites¶

AI Assistant Integration (ARC IaC MCP)¶

The ARC IaC MCP Server is a hosted Model Context Protocol service that lets AI assistants browse, search, scaffold, compare, and security-scan any of the SourceFuse ARC Terraform modules — directly from natural language.

What you can do with it:

Discover — search and filter modules by keyword or AWS resource type.
Understand — get inputs, outputs, and resources for any module without leaving your editor.
Scaffold — generate production-ready, multi-file Terraform with cross-module wiring already done.
Secure — scan generated or existing HCL for misconfigurations before it hits a PR.
Compare — diff modules side-by-side to make informed architectural decisions.

Setup (one minute)¶

The MCP endpoint is https://arc-iac-mcp.sourcef.us/mcp. Pick your client:

Claude Code CLI:

claude mcp add arc-iac --transport http https://arc-iac-mcp.sourcef.us/mcp

Claude Desktop — edit ~/Library/Application Support/Claude/claude_desktop_config.json:

{
  "mcpServers": {
    "arc-iac": {
      "url": "https://arc-iac-mcp.sourcef.us/mcp"
    }
  }
}

Cursor / Windsurf / Kiro — add the same block to .cursor/mcp.json (or the equivalent for your client).

Example prompts to try¶

"List all ARC modules sorted by downloads"
"What inputs does arc-ecs require?"
"Scaffold a production-ready arc-db Aurora setup with Secrets Manager"
"Compare arc-eks and arc-ecs for running 10 microservices"
"Scan this Terraform before I raise a PR: <paste HCL>"

See the ARC IaC MCP repo for the full tool reference, troubleshooting tips, and local-development instructions.

Configurations¶

Configure pre-commit hooks
1
pre-commit install

Tests¶

Tests are available in test directory

Configure the dependencies

cd test/
go mod init github.com/sourcefuse/terraform-aws-refarch-opensearch
go get github.com/gruntwork-io/terratest/modules/terraform

Now execute the test
1
go test -timeout 30m

Contributing¶

See CONTRIBUTING.md for commit conventions and development setup.

Authors¶

This project is authored by:
* SourceFuse ARC Team

terraform-aws-arc-opensearch¶
