terraform-aws-arc-security ¶

Module: sourcefuse/arc-security/aws

Registry: https://registry.terraform.io/modules/sourcefuse/arc-security/aws

Category: Security / Compliance

Source: https://github.com/sourcefuse/terraform-aws-arc-security

Tip

🤖 New: Use this module with AI assistants via the ARC IaC MCP Server — search, scaffold, and security-scan ARC modules from natural language. Quick setup ↓

Overview¶

Enables and configures AWS security services — GuardDuty, Security Hub, AWS Config, and Inspector — with SNS notifications.

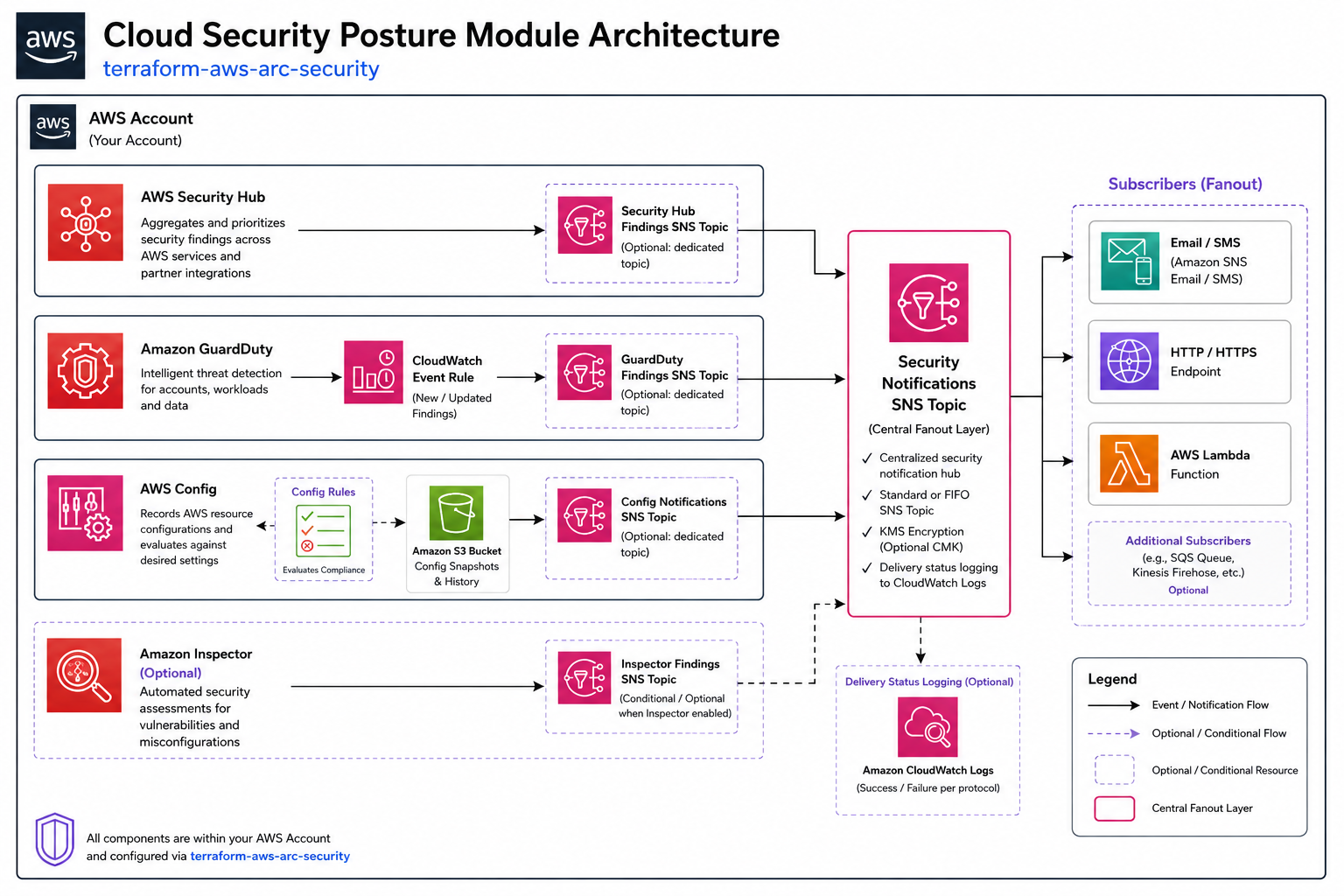

Architecture¶

Architecture Diagram

What It Does¶

GuardDuty threat detection with SNS alerts
Security Hub with configurable compliance standards
AWS Config rules and conformance packs
Amazon Inspector for vulnerability scanning
SNS topics for security findings notifications
IAM roles for Config recorder

For more information about this repository and its usage, please see Terraform AWS Cloud Security Module Usage Guide.

Quickstart¶

module "cloud_security" {
  source      = "sourcefuse/arc-security/aws"
  version     = "1.0.2"
  region      = var.region
  environment = var.environment
  namespace   = var.namespace

  enable_inspector    = true
  enable_aws_config   = true
  enable_guard_duty   = true
  enable_security_hub = false

  create_config_iam_role = true

  aws_config_sns_subscribers   = local.aws_config_sns_subscribers
  guard_duty_sns_subscribers   = local.guard_duty_sns_subscribers
  security_hub_sns_subscribers = local.security_hub_sns_subscribers

  aws_config_managed_rules       = var.aws_config_managed_rules
  enabled_security_hub_standards = local.security_hub_standards

  create_inspector_iam_role               = var.create_inspector_iam_role
  inspector_enabled_rules                 = var.inspector_enabled_rules
  inspector_schedule_expression           = var.inspector_schedule_expression
  inspector_assessment_event_subscription = var.inspector_assessment_event_subscription

  tags = module.tags.tags
}

Required Inputs¶

Name	Type	Description
`namespace`	`string`	Namespace prefix
`environment`	`string`	Deployment environment
`region`	`string`	AWS region
## Key Outputs

Name	Description
`guardduty_detector_id`	GuardDuty detector ID
`security_hub_arn`	Security Hub ARN
`config_recorder_id`	AWS Config recorder ID
## Full Variable & Output Reference

The complete inputs/outputs reference is auto-generated below.

Requirements¶

Name	Version
terraform	>= 1.5.0
aws	>= 5.0, < 6.0

Providers¶

Name	Version
aws	5.99.1

Modules¶

Name	Source	Version
aws_config_storage	cloudposse/config-storage/aws	1.0.2
config	cloudposse/config/aws	1.5.2
guard_duty	cloudposse/guardduty/aws	0.6.0
guard_duty_sns_topic	cloudposse/sns-topic/aws	0.20.1
inspector	./modules/inspector	n/a
security_hub	cloudposse/security-hub/aws	0.12.2
securityhub_sns_kms_key	cloudposse/kms-key/aws	0.12.2
securityhub_sns_topic	cloudposse/sns-topic/aws	0.21.0
sns_guard_duty	cloudposse/sns-topic/aws	0.21.0

Resources¶

Name	Type
aws_cloudwatch_event_rule.guard_duty_findings	resource
aws_cloudwatch_event_rule.imported_findings	resource
aws_cloudwatch_event_target.guard_duty_imported_findings	resource
aws_cloudwatch_event_target.security_hub_imported_findings	resource
aws_kms_alias.this	resource
aws_kms_key.this	resource
aws_sns_topic_policy.sns_topic_guard_duty	resource
aws_caller_identity.current	data source
aws_iam_policy_document.guard_duty_sns_topic_policy	data source
aws_iam_policy_document.securityhub_sns_kms_key_policy	data source
aws_iam_session_context.current	data source
aws_partition.current	data source
aws_region.current	data source

Inputs¶

Name	Description	Type	Default	Required
add_inspector_member_accounts	Whether to associate as a member account with your Amazon Inspector delegated administrator account.	`bool`	`false`	no
aws_config_managed_rules	A list of AWS Managed Rules that should be enabled on the account. See the following for a list of possible rules to enable: https://docs.aws.amazon.com/config/latest/developerguide/managed-rules-by-aws-config.html	map(object({ description = string identifier = string input_parameters = any tags = map(string) enabled = bool }))	`{}`	no
aws_config_sns_subscribers	A map of subscription configurations for SNS topics For more information, see: https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/sns_topic_subscription#argument-reference protocol: The protocol to use. The possible values for this are: sqs, sms, lambda, application. (http or https are partially supported, see link) (email is an option but is unsupported in terraform, see link). endpoint: The endpoint to send data to, the contents will vary with the protocol. (see link for more information) endpoint_auto_confirms: Boolean indicating whether the end point is capable of auto confirming subscription e.g., PagerDuty. Default is false raw_message_delivery: Boolean indicating whether or not to enable raw message delivery (the original message is directly passed, not wrapped in JSON with the original message in the message property). Default is false	map(object({ protocol = string endpoint = string endpoint_auto_confirms = bool raw_message_delivery = bool }))	n/a	yes
create_config_iam_role	Flag to indicate whether an iam role should be created for aws config.	`bool`	`false`	no
enable_aws_config	Whether to enable AWS Config	`bool`	`true`	no
enable_guard_duty	Whether to enable Guard Duty	`bool`	`true`	no
enable_inspector	Whether to enable Inspector	`bool`	`true`	no
enable_inspector_at_orgnanization	Whether to enable Inspecter at Org level, if false account_list should be provided	`bool`	`false`	no
enable_security_hub	Whether to enable Security Hub	`bool`	`true`	no
enabled_security_hub_standards	A list of standards/rulesets to enable See https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/securityhub_standards_subscription#argument-reference The possible values are: - standards/aws-foundational-security-best-practices/v/1.0.0 - ruleset/cis-aws-foundations-benchmark/v/1.2.0 - standards/pci-dss/v/3.2.1	`list(any)`	n/a	yes
environment	ID element. Usually used for region e.g. 'uw2', 'us-west-2', OR role 'prod', 'staging', 'dev', 'UAT'	`string`	n/a	yes
force_destroy	(Optional, Default:false ) A boolean that indicates all objects should be deleted from the bucket so that the bucket can be destroyed without error. These objects are not recoverable	`bool`	`false`	no
guard_duty_s3_protection_enabled	Flag to indicate whether S3 protection will be turned on in GuardDuty.	`bool`	`false`	no
guard_duty_sns_subscribers	A map of subscription configurations for SNS topics For more information, see: https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/sns_topic_subscription#argument-reference protocol: The protocol to use. The possible values for this are: sqs, sms, lambda, application. (http or https are partially supported, see link) (email is an option but is unsupported in terraform, see link). endpoint: The endpoint to send data to, the contents will vary with the protocol. (see link for more information) endpoint_auto_confirms: Boolean indicating whether the end point is capable of auto confirming subscription e.g., PagerDuty. Default is false raw_message_delivery: Boolean indicating whether or not to enable raw message delivery (the original message is directly passed, not wrapped in JSON with the original message in the message property). Default is false	map(object({ protocol = string endpoint = string endpoint_auto_confirms = bool raw_message_delivery = bool }))	`null`	no
inspector_account_list	List of Account for which inspector has to be enabled	`list(string)`	n/a	yes
inspector_resource_types	Type of resources to scan. Valid values are EC2, ECR, LAMBDA and LAMBDA_CODE. At least one item is required.	`list(string)`	[ "EC2", "ECR" ]	no
inspector_schedule_expression	AWS Schedule Expression to indicate how often the inspector scheduled event shoud run	`string`	`"rate(7 days)"`	no
inspector_sns_subscribers	A map of subscription configurations for SNS topics For more information, see: https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/sns_topic_subscription#argument-reference protocol: The protocol to use. The possible values for this are: sqs, sms, lambda, application. (http or https are partially supported, see link) (email is an option but is unsupported in terraform, see link). endpoint: The endpoint to send data to, the contents will vary with the protocol. (see link for more information) endpoint_auto_confirms: Boolean indicating whether the end point is capable of auto confirming subscription e.g., PagerDuty. Default is false raw_message_delivery: Boolean indicating whether or not to enable raw message delivery (the original message is directly passed, not wrapped in JSON with the original message in the message property). Default is false	map(object({ protocol = string endpoint = string endpoint_auto_confirms = bool raw_message_delivery = bool }))	`null`	no
namespace	Namespace for the resources.	`string`	n/a	yes
region	AWS region	`string`	`"us-east-1"`	no
security_hub_sns_subscribers	A map of subscription configurations for SNS topics For more information, see: https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/sns_topic_subscription#argument-reference protocol: The protocol to use. The possible values for this are: sqs, sms, lambda, application. (http or https are partially supported, see link) (email is an option but is unsupported in terraform, see link). endpoint: The endpoint to send data to, the contents will vary with the protocol. (see link for more information) endpoint_auto_confirms: Boolean indicating whether the end point is capable of auto confirming subscription e.g., PagerDuty. Default is false raw_message_delivery: Boolean indicating whether or not to enable raw message delivery (the original message is directly passed, not wrapped in JSON with the original message in the message property). Default is false	map(object({ protocol = string endpoint = string endpoint_auto_confirms = bool raw_message_delivery = bool }))	`null`	no
tags	Tags for AWS resources	`map(string)`	n/a	yes

Outputs¶

Name	Description
aws_config_configuration_recorder_id	The ID of the AWS Config Recorder
aws_config_iam_role	IAM Role used to make read or write requests to the delivery channel and to describe the AWS resources associated with the account.
aws_config_sns_topic	SNS topic
aws_config_sns_topic_subscriptions	SNS topic subscriptions
guard_duty_detector	GuardDuty detector
guard_duty_sns_topic	SNS topic
guard_duty_sns_topic_subscriptions	SNS topic subscriptions
inspector_aws_cloudwatch_event_rule	The AWS Inspector event rule
inspector_aws_cloudwatch_event_target	The AWS Inspector event target
security_hub_enabled_subscriptions	A list of subscriptions that have been enabled
security_hub_sns_topic	The SNS topic that was created
security_hub_sns_topic_subscriptions	The SNS topic that was created

Git commits¶

while Contributing or doing git commit please specify the breaking change in your commit message whether its major,minor or patch

For Example

git commit -m "your commit message #major"

By specifying this , it will bump the version and if you dont specify this in your commit message then by default it will consider patch and will bump that accordingly

Development¶

Prerequisites¶

Configurations¶

Configure pre-commit hooks
1
pre-commit install

Tests¶

Tests are available in test directory

Configure the dependencies

cd test/
go mod init github.com/sourcefuse/terraform-aws-refarch-<module_name>
go get github.com/gruntwork-io/terratest/modules/terraform

Now execute the test
1
go test -timeout 30m

AI Assistant Integration (ARC IaC MCP)¶

The ARC IaC MCP Server is a hosted Model Context Protocol service that lets AI assistants browse, search, scaffold, compare, and security-scan any of the SourceFuse ARC Terraform modules — directly from natural language.

What you can do with it:

Discover — search and filter modules by keyword or AWS resource type.
Understand — get inputs, outputs, and resources for any module without leaving your editor.
Scaffold — generate production-ready, multi-file Terraform with cross-module wiring already done.
Secure — scan generated or existing HCL for misconfigurations before it hits a PR.
Compare — diff modules side-by-side to make informed architectural decisions.

Setup (one minute)¶

The MCP endpoint is https://arc-iac-mcp.sourcef.us/mcp. Pick your client:

Claude Code CLI:

claude mcp add arc-iac --transport http https://arc-iac-mcp.sourcef.us/mcp

Claude Desktop — edit ~/Library/Application Support/Claude/claude_desktop_config.json:

{
  "mcpServers": {
    "arc-iac": {
      "url": "https://arc-iac-mcp.sourcef.us/mcp"
    }
  }
}

Cursor / Windsurf / Kiro — add the same block to .cursor/mcp.json (or the equivalent for your client).

Example prompts to try¶

"List all ARC modules sorted by downloads"
"What inputs does arc-ecs require?"
"Scaffold a production-ready arc-db Aurora setup with Secrets Manager"
"Compare arc-eks and arc-ecs for running 10 microservices"
"Scan this Terraform before I raise a PR: <paste HCL>"

See the ARC IaC MCP repo for the full tool reference, troubleshooting tips, and local-development instructions.

Contributing¶

See CONTRIBUTING.md for commit conventions and development setup.

Authors¶

This project is authored by: - SourceFuse
