terraform-aws-arc-vpn

Latest Release Last Updated Terraform GitHub Actions

Quality gate

Known Vulnerabilities

Overview

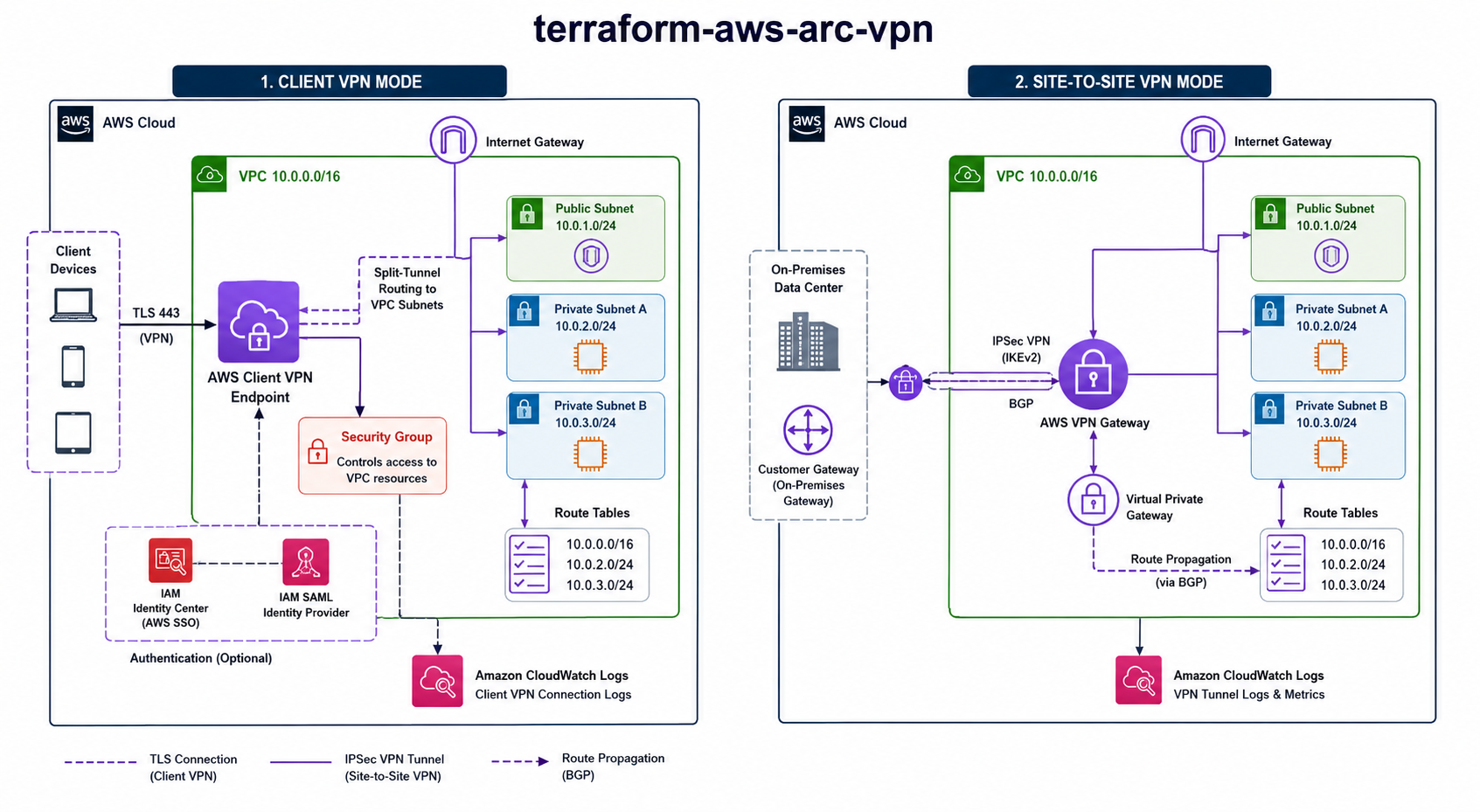

SourceFuse AWS Reference Architecture (ARC) Terraform module for managing a Client VPN and Site to Site VPN.

For more information about this repository and its usage, please see Terraform AWS ARC CloudFront Usage Guide.

Usage

To see a Client VPN example, check out the main.tf file in the example folder.

module "this" {
  source  = "sourcefuse/arc-vpn/aws"
  version = "1.0.0"
  vpc_id = data.aws_vpc.this.id

  authentication_options_type                       = "certificate-authentication"
  authentication_options_root_certificate_chain_arn = module.self_signed_cert_root.certificate_arn

  ## access
  client_vpn_authorize_all_groups = true
  client_vpn_subnet_ids           = data.aws_subnets.private.ids
  client_vpn_target_network_cidr  = data.aws_vpc.this.cidr_block

  ## self signed certificate
  create_self_signed_server_cert             = true
  self_signed_server_cert_server_common_name = "${var.namespace}-${var.environment}.arc-vpn-example.client"
  self_signed_server_cert_organization_name  = var.namespace
  self_signed_server_cert_ca_pem             = module.self_signed_cert_ca.certificate_pem
  self_signed_server_cert_private_ca_key_pem = join("", data.aws_ssm_parameter.ca_key[*].value)

  ## client vpn
  client_cidr             = cidrsubnet(data.aws_vpc.this.cidr_block, 6, 1)
  client_vpn_name         = "${var.namespace}-${var.environment}-client-vpn-example"
  client_vpn_gateway_name = "${var.namespace}-${var.environment}-vpn-gateway-example"

  tags = module.tags.tags
}

Requirements

Name Version
terraform >= 1.4, < 2.0.0
aws >= 4.0, < 6.0

Providers

No providers.

Modules

Name Source Version
aws_site_to_site_vpn ./modules/site-to-site-vpn n/a
client_vpn ./modules/client-vpn n/a

Resources

No resources.

Inputs

Name Description Type Default Required
client_vpn_config VPN configuration options including certs and vpn settings
object({
create = optional(bool, false)
# certs
server_certificate_data = optional(object({
create = optional(bool, true)
common_name = string
organization = string
allowed_uses = optional(list(string), [
"key_encipherment",
"digital_signature",
"server_auth"
])
ca_cert_pem = string
ca_private_key_pem = string
certificate_arn = optional(string, null)
}))


# vpn settings
iam_saml_provider_enabled = optional(bool, false)
iam_saml_provider_name = optional(string, null)
saml_metadata_document_content = optional(string, null)
client_cidr_block = string
split_tunnel = optional(bool, true)
self_service_portal = optional(string, "disabled")
dns_servers = optional(list(string), ["1.1.1.1", "1.0.0.1"])

# logging options
log_options = optional(object({
enabled = bool
cloudwatch_log_stream = optional(string, null)
cloudwatch_log_group = optional(string, null)
}), {
enabled = false
})

# authentication options
authentication_options = list(object({
active_directory_id = optional(string, null)
root_certificate_chain_arn = optional(string, null)
saml_provider_arn = optional(string, null)
self_service_saml_provider_arn = optional(string, null)
type = string
}))

transport_protocol = optional(string, "tcp")

# security and network associations
security_group_data = optional(object({
client_vpn_additional_security_group_ids = optional(list(string), [])
ingress_rules = list(object({
description = optional(string, "")
from_port = number
to_port = number
protocol = any
cidr_blocks = optional(list(string), [])
security_group_ids = optional(list(string), [])
ipv6_cidr_blocks = optional(list(string), [])
}))
egress_rules = list(object({
description = optional(string, "")
from_port = number
to_port = number
protocol = any
cidr_blocks = optional(list(string), [])
security_group_ids = optional(list(string), [])
ipv6_cidr_blocks = optional(list(string), [])
}))
}),
{
ingress_rules = [
{
description = "VPN ingress to 443"
from_port = 443
to_port = 443
protocol = "tcp"
}
]
egress_rules = [
{
description = "VPN egress to internet"
from_port = 0
to_port = 0
protocol = -1
cidr_blocks = ["0.0.0.0/0"]
}
]
}
)

subnet_ids = list(string)

# authorization options
authorization_options = map(object({
target_network_cidr = string
access_group_id = optional(string, null)
authorize_all_groups = optional(bool, true)
}))
})
{
"authentication_options": null,
"authorization_options": null,
"client_cidr_block": null,
"create": false,
"subnet_ids": []
}
no
environment Environmenr name string n/a yes
name Name of Client VPN or Site to site VPN string n/a yes
namespace Namespace name string n/a yes
site_to_site_vpn_config Configuration for AWS VPN setup combining customer gateway, VPN gateway, and VPN connection configurations. This structure provides a comprehensive approach to defining all necessary parameters for establishing a Site-to-Site VPN.
object({
create = optional(bool, false)
customer_gateway = object({
bgp_asn = optional(number, 65000) # The Border Gateway Protocol (BGP) Autonomous System Number (ASN) Value must be in 1 - 4294967294 range.
certificate_arn = optional(string, null) # The Amazon Resource Name (ARN) for the customer gateway certificate.
device_name = optional(string, null) # A name for the customer gateway device.
ip_address = string # The IP address of the customer gateway
type = optional(string, "ipsec.1") # The type of VPN connection (e.g., 'ipsec.1')
})

vpn_gateway = object({
create = optional(bool, true)
vpc_id = string # The VPC ID to create the VPN gateway in.
amazon_side_asn = optional(number, null) # The Autonomous System Number (ASN) for the Amazon side of the gateway.
availability_zone = optional(string, null) # The Availability Zone for the VPN gateway.
route_table_ids = optional(list(string), []) # This resource should not be used with a route table that has the propagating_vgws argument set. If that argument is set, any route propagation not explicitly listed in its value will be removed.
})

vpn_connection = object({
transit_gateway_id = optional(string, null) # The ID of the transit gateway
static_routes_only = optional(bool, false) # If true, only static routes are used
enable_acceleration = optional(bool, null) # (Optional, Default false) Indicate whether to enable acceleration for the VPN connection. Supports only EC2 Transit Gateway.

local_ipv4_network_cidr = optional(string, "0.0.0.0/0") # The IPv4 CIDR on the customer gateway side
local_ipv6_network_cidr = optional(string, null) # The IPv6 CIDR on the customer gateway side "::/0"
outside_ip_address_type = optional(string, "PublicIpv4") # Public or Private S2S VPN
remote_ipv4_network_cidr = optional(string, "0.0.0.0/0") # The IPv4 CIDR on the AWS side
remote_ipv6_network_cidr = optional(string, null) # The IPv6 CIDR on the AWS side "::/0"
transport_transit_gateway_attachment_id = optional(string, null) # Transit Gateway attachment ID (required for PrivateIpv4)

tunnel_config = object({
tunnel1 = object({
inside_cidr = string # CIDR block of the first tunnel
preshared_key = optional(string, null) # Pre-shared key for the first tunnel
phase1_encryption_algorithms = optional(list(string), ["AES128", "AES256"]) # Phase 1 encryption algorithms for tunnel 1
phase2_encryption_algorithms = optional(list(string), ["AES128", "AES256"]) # Phase 2 encryption algorithms for tunnel 1
phase1_integrity_algorithms = optional(list(string), ["SHA1", "SHA2-256"]) # Phase 1 integrity algorithms for tunnel 1
phase2_integrity_algorithms = optional(list(string), ["SHA1", "SHA2-256"]) # Phase 2 integrity algorithms for tunnel 1
log_group_arn = optional(string, null)
log_group_kms_arn = optional(string, null) # null - log disabled
log_enabled = optional(bool, false)
log_output_format = optional(string, "json")
log_retention_in_days = optional(number, 7)
})

tunnel2 = object({
inside_cidr = string # CIDR block of the second tunnel
preshared_key = optional(string, null) # Pre-shared key for the second tunnel
phase1_encryption_algorithms = optional(list(string), ["AES128", "AES256"]) # Phase 1 encryption algorithms for tunnel 2
phase2_encryption_algorithms = optional(list(string), ["AES128", "AES256"]) # Phase 2 encryption algorithms for tunnel 2
phase1_integrity_algorithms = optional(list(string), ["SHA1", "SHA2-256"]) # Phase 1 integrity algorithms for tunnel 2
phase2_integrity_algorithms = optional(list(string), ["SHA1", "SHA2-256"]) # Phase 2 integrity algorithms for tunnel 2
log_enabled = optional(bool, false)
log_group_arn = optional(string, null)
log_group_kms_arn = optional(string, null)
log_output_format = optional(string, "json")
log_retention_in_days = optional(number, 7)
})
})
# VPN routes configuration (only for static routes)
routes = optional(list(object({
destination_cidr_block = string # The CIDR block to route through the VPN
})), [])
})
})
{
"create": false,
"customer_gateway": null,
"vpn_connection": null,
"vpn_gateway": null
}
no
tags Default tags to apply to every applicable resource map(string) n/a yes
vpc_id The ID of the target network VPC string n/a yes

Outputs

Name Description
client_vpn_arn The client vpn ARN
client_vpn_id The client vpn ID
customer_gateway_id Customer Gateway ID
server_certificate Server certificate ARN
site_to_site_vpn_id The site to site vpn ID
vpn_gateway_id The VPN Gateway ID

Versioning

while Contributing or doing git commit please specify the breaking change in your commit message whether its major,minor or patch

For Example

git commit -m "your commit message #major"
By specifying this , it will bump the version and if you don't specify this in your commit message then by default it will consider patch and will bump that accordingly

Development

Prerequisites

Configurations

  • Configure pre-commit hooks
    pre-commit install


Tests

  • Tests are available in test directory
  • Configure the dependencies
    1
    2
    3
    cd test/
    go mod init github.com/sourcefuse/terraform-aws-refarch-vpn
    go get github.com/gruntwork-io/terratest/modules/terraform

  • Now execute the test
    go test -timeout  30m


Authors

This project is authored by:

  • SourceFuse
