terraform-aws-arc-sns ¶

Module: sourcefuse/arc-sns/aws

Registry: https://registry.terraform.io/modules/sourcefuse/arc-sns/aws

Category: Messaging / Notifications

Source: https://github.com/sourcefuse/terraform-aws-arc-sns

Tip

🤖 New: Use this module with AI assistants via the ARC IaC MCP Server — search, scaffold, and security-scan ARC modules from natural language. Quick setup ↓

Overview¶

Creates SNS topics with subscriptions, KMS encryption, access policies, and FIFO support.

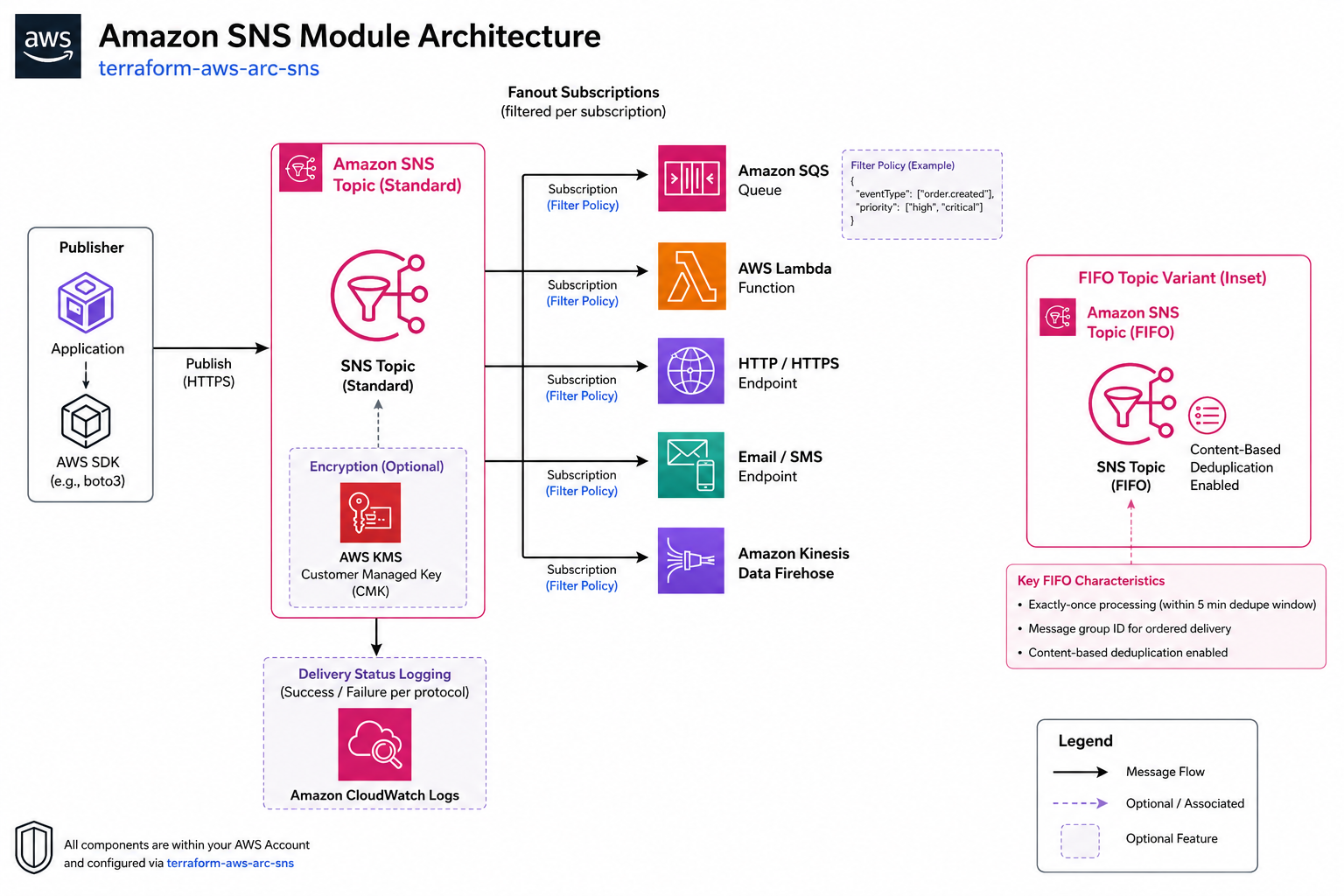

Architecture¶

Architecture Diagram

What It Does¶

Standard and FIFO SNS topics
Email, SQS, Lambda, HTTP/S, and SMS subscriptions
KMS encryption for message data
Topic access policy management
Message filtering policies
Dead letter queue for failed deliveries

For more information about this repository and its usage, please see Terraform AWS SNS Usage Guide.

Quickstart¶

module "sns" {
  source               = "sourcefuse/arc-sns/aws"
  version              = "0.0.1"

  name                 = var.topic_name
  display_name         = var.display_name

  tags = module.tags.tags
}

Required Inputs¶

Name	Type	Description
`name`	`string`	SNS topic name
## Key Outputs

Name	Description
`topic_arn`	SNS topic ARN
`topic_name`	SNS topic name
## Full Variable & Output Reference

The complete inputs/outputs reference is auto-generated below.

Requirements¶

Name	Version
terraform	>= 1.5.0
aws	~> 5.0

Providers¶

Name	Version
aws	4.67.0

Modules¶

No modules.

Resources¶

Name	Type
aws_lambda_permission.external_lambda	resource
aws_lambda_permission.sns_invoke	resource
aws_sns_topic.this	resource
aws_sns_topic_subscription.this	resource

Inputs¶

Name	Description	Type	Default	Required
application_feedback	Map of IAM role ARNs and sample rate for success and failure feedback	object({ failure_role_arn = optional(string) success_role_arn = optional(string) success_sample_rate = optional(number) })	`{}`	no
archive_policy	The message archive policy for FIFO topics	`string`	`null`	no
content_based_deduplication	Enables content-based deduplication for FIFO topics	`bool`	`false`	no
create_subscription	Whether to create SNS subscriptions	`bool`	`true`	no
create_topic	Whether to create the SNS topic	`bool`	`true`	no
delivery_policy	The SNS delivery policy	`string`	`null`	no
display_name	Display name for the SNS topic	`string`	`null`	no
fifo_throughput_scope	Enables higher throughput for FIFO topics by adjusting the scope of deduplication. Valid values: Topic, MessageGroup	`string`	`null`	no
fifo_topic	Boolean indicating whether or not to create a FIFO (first-in-first-out) topic	`bool`	`false`	no
firehose_feedback	Map of IAM role ARNs and sample rate for success and failure feedback	object({ failure_role_arn = optional(string) success_role_arn = optional(string) success_sample_rate = optional(number) })	`{}`	no
http_feedback	Map of IAM role ARNs and sample rate for success and failure feedback	object({ failure_role_arn = optional(string) success_role_arn = optional(string) success_sample_rate = optional(number) })	`{}`	no
kms_master_key_id	The ID of an AWS-managed customer master key (CMK) for Amazon SNS or a custom CMK	`string`	`null`	no
lambda_feedback	Map of IAM role ARNs and sample rate for success and failure feedback	object({ failure_role_arn = optional(string) success_role_arn = optional(string) success_sample_rate = optional(number) })	`{}`	no
lambda_permissions	Map of Lambda function ARNs that should be granted permission to be invoked by this SNS topic	`map(string)`	`{}`	no
name	Name of the SNS topic	`string`	n/a	yes
policy	The fully-formed AWS policy as JSON	`string`	`null`	no
signature_version	The signature version corresponds to the hashing algorithm used while creating the signature of the notifications	`number`	`null`	no
sqs_feedback	Map of IAM role ARNs and sample rate for success and failure feedback	object({ failure_role_arn = optional(string) success_role_arn = optional(string) success_sample_rate = optional(number) })	`{}`	no
subscriptions	A map of subscription configurations	map(object({ protocol = string endpoint = string confirmation_timeout_in_minutes = optional(number, 1) endpoint_auto_confirms = optional(bool, false) raw_message_delivery = optional(bool, false) filter_policy = optional(string) filter_policy_scope = optional(string) delivery_policy = optional(string) redrive_policy = optional(string) }))	`{}`	no
tags	A map of tags to assign to the resource	`map(string)`	`{}`	no
tracing_config	Tracing mode of an Amazon SNS topic	`string`	`null`	no
use_name_prefix	Determines whether name is used as a prefix	`bool`	`false`	no

Outputs¶

Name	Description
subscriptions	Map of subscriptions created and their attributes
topic_arn	The ARN of the SNS topic
topic_display_name	The display name of the SNS topic
topic_id	The ID of the SNS topic
topic_name	The name of the SNS topic
topic_owner	The AWS Account ID of the SNS topic owner

Versioning¶

This project uses a .version file at the root of the repo which the pipeline reads from and does a git tag.

When you intend to commit to main, you will need to increment this version. Once the project is merged, the pipeline will kick off and tag the latest git commit.

Development¶

Prerequisites¶

Configurations¶

Configure pre-commit hooks
1
pre-commit install

Versioning¶

while Contributing or doing git commit please specify the breaking change in your commit message whether its major,minor or patch

For Example

git commit -m "your commit message #major"

By specifying this , it will bump the version and if you don't specify this in your commit message then by default it will consider patch and will bump that accordingly

Tests¶

Tests are available in test directory

Configure the dependencies

cd test/
go mod init github.com/sourcefuse/terraform-aws-refarch-<module_name>
go get github.com/gruntwork-io/terratest/modules/terraform

Now execute the test
1
go test -timeout 30m

AI Assistant Integration (ARC IaC MCP)¶

The ARC IaC MCP Server is a hosted Model Context Protocol service that lets AI assistants browse, search, scaffold, compare, and security-scan any of the SourceFuse ARC Terraform modules — directly from natural language.

What you can do with it:

Discover — search and filter modules by keyword or AWS resource type.
Understand — get inputs, outputs, and resources for any module without leaving your editor.
Scaffold — generate production-ready, multi-file Terraform with cross-module wiring already done.
Secure — scan generated or existing HCL for misconfigurations before it hits a PR.
Compare — diff modules side-by-side to make informed architectural decisions.

Setup (one minute)¶

The MCP endpoint is https://arc-iac-mcp.sourcef.us/mcp. Pick your client:

Claude Code CLI:

claude mcp add arc-iac --transport http https://arc-iac-mcp.sourcef.us/mcp

Claude Desktop — edit ~/Library/Application Support/Claude/claude_desktop_config.json:

{
  "mcpServers": {
    "arc-iac": {
      "url": "https://arc-iac-mcp.sourcef.us/mcp"
    }
  }
}

Cursor / Windsurf / Kiro — add the same block to .cursor/mcp.json (or the equivalent for your client).

Example prompts to try¶

"List all ARC modules sorted by downloads"
"What inputs does arc-ecs require?"
"Scaffold a production-ready arc-db Aurora setup with Secrets Manager"
"Compare arc-eks and arc-ecs for running 10 microservices"
"Scan this Terraform before I raise a PR: <paste HCL>"

See the ARC IaC MCP repo for the full tool reference, troubleshooting tips, and local-development instructions.

Contributing¶

See CONTRIBUTING.md for commit conventions and development setup.

Authors¶

This project is authored by: - SourceFuse ARC Team
